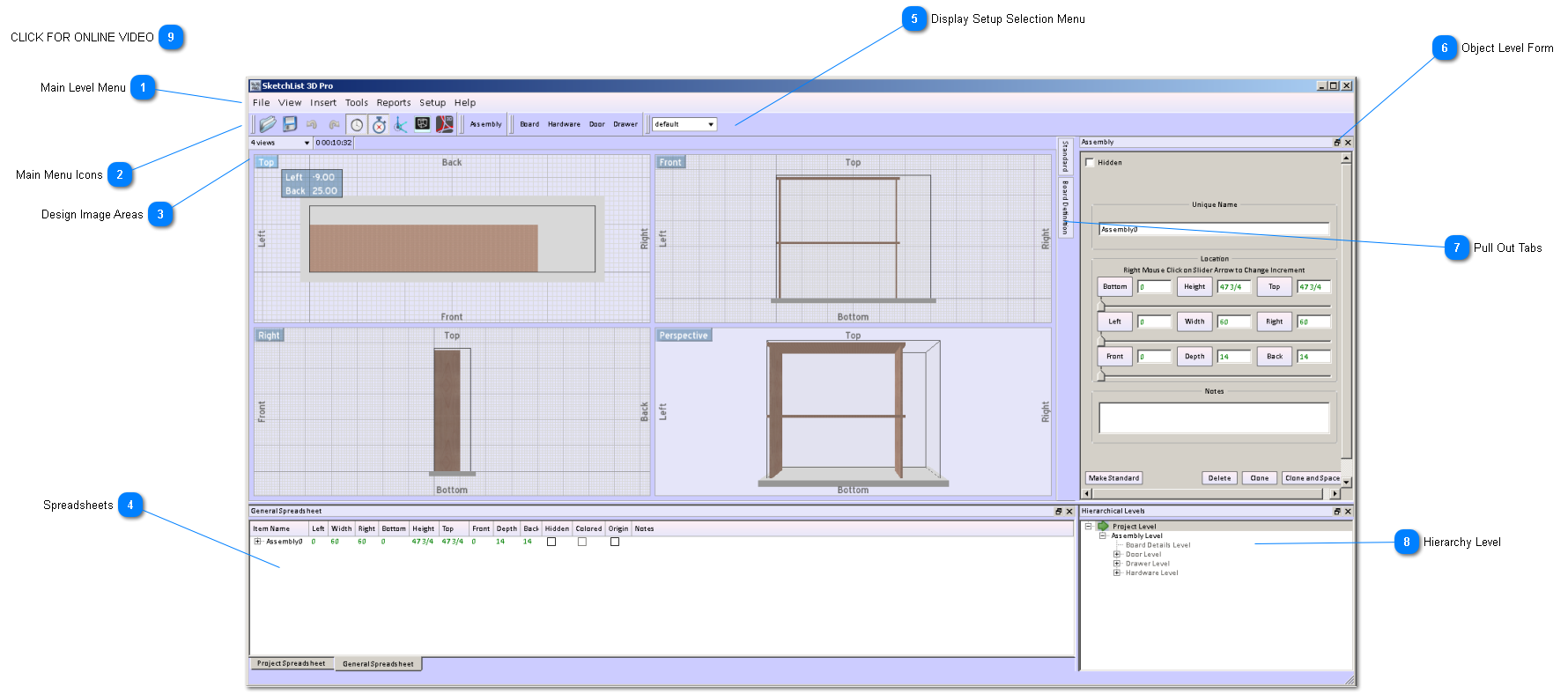

SketchList 3D - Main Window

SketchList 3D - Main Window
1

Main Level Menu

Access to software functions.
2

Main Menu Icons

  Access to common functions.
3

Design Image Areas

Allows displaying from one to seven views of the design, selection of objects, and contains right click menu items for funcstionality.
4

Spreadsheets

Spreadsheets allow setting sizes and location of objects in the design.  Helpful because it provides access and viewing of many objects information at a time.
5

Display Setup Selection Menu

Ability to create and save many different layouts of the main form user interface elements.
6

Object Level Form

Working on one object at a time, displays and allows changing of object specfic information.  An example is for a board.
7

Pull Out Tabs

7. Pull Out Tabs
Moving your mouse cursor over these tabs reveal additional forms for information input or access to objects within SketchList 3D.
8

Hierarchy Level

Click on a level to place the working location of at that level.  For example clicking on door level puts you into that level for a given door.
9

CLICK FOR ONLINE VIDEO


This video shows how to arrange CLICK HERE your main form.
